Advanced Conical Design for Superior Drying Uniformity
The SZG Series Conical Vacuum Drying Machine is engineered for precision and hygiene.By utilizing a slow-rotating double cone structure, the material is continuously mixed in a 360-degree motion, ensuring complete uniform drying and preventing local overheating. This makes it the premier choice for delicate pharmaceutical and food-grade powders.
Why Our Design Stands Out:
Uniform Drying Performance: Driven by a stable power source, the tank's rotation ensures every particle contacts the heated inner shell. This continuous mixing, combined with vacuum moisture removal, achieves the drying purpose in a significantly shorter time.
Easy-to-Clean & Maintenance: Designed strictly to GMP standards, the equipment features a smooth, mirror-polished interior that prevents material buildup. The simplified structure and reliable mechanical seals make it exceptionally easy to sanitize between batches.
Optimized for Viscous Materials: For materials that tend to stick, we offer a "lifting plate" mechanism or internal ball bearings to ensure the material stays in motion, further enhancing drying uniformity.
Precise Temperature & Speed Control: Our SZG-A model offers stepless speed regulation and constant temperature control (20-160°C), allowing you to tailor the rotation to your material’s specific flow characteristics.
Energy-Efficient Operation: The indirect heating jacket system provides more than twice the thermal efficiency of ordinary drying ovens, saving energy while protecting the material from contamination.
Working Principle
◎ Heat energy (such as hot water, low-pressure steam, or heat transfer oil) is introduced into the sealed jacket, and the heat is transferred to the material being dried through the inner shell.
◎ Driven by a power source, the tank rotates slowly, continuously mixing the material inside, thereby enhancing the drying process.
◎ The material is under vacuum, and the decrease in vapor pressure causes the moisture (solvent) on the material surface to reach saturation and evaporate, which is then promptly discharged and recovered by the vacuum pump. The process of moisture (solvent) inside the material continuously permeating to the surface, evaporating, and being discharged continues, allowing the material to achieve its drying purpose in a very short time.
Performance Characteristics
◎ When heated by oil, automatic temperature control is used, suitable for drying biochemical products and mineral raw materials.
◎ Temperatures can range from 20 to 160°C.
◎ High thermal efficiency, more than twice that of ordinary ovens.
◎ Indirect heating prevents material contamination, meeting GMP requirements. The equipment is easy to maintain, operate, and clean.

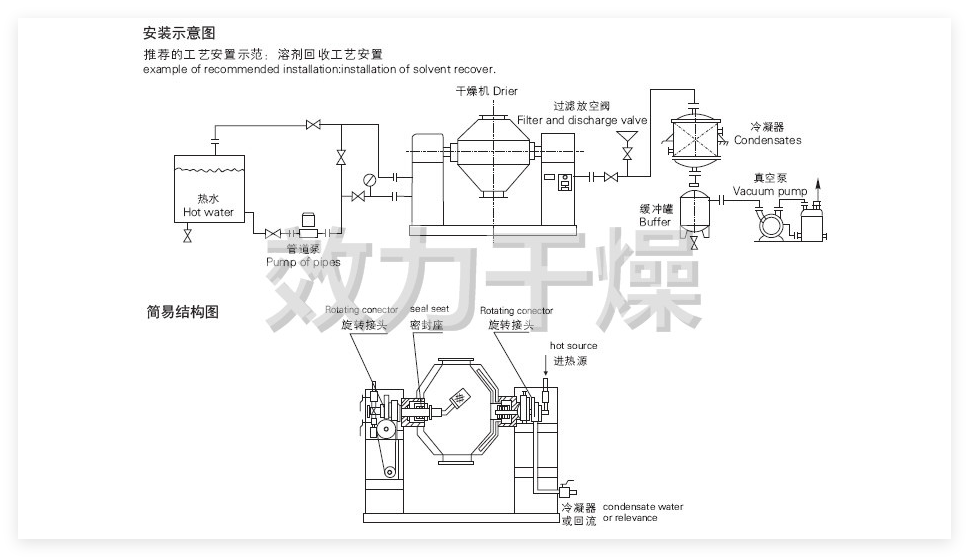

◎ Recommended process setup demonstration: solvent recovery process setup.
Suitable Materials
Suitable for the concentration, mixing, drying of powdered, granular, and fibrous materials in the chemical, pharmaceutical, and food industries, as well as materials requiring low-temperature drying (such as biochemical products). Especially suitable for drying easily oxidized, volatile, heat-sensitive, strongly irritating, toxic materials, and materials for which crystallization cannot be destroyed.
Technical Specifications
Specification
name
100
350
500
750
1000
1500
2000
3500
4500
5000
Can contents
100
350
500
750
1000
1500
2000
3500
4500
5000
Loading volume (L)
≤50
≤175
≤250
≤375
≤500
≤750
≤1000
≤1750
≤2250
≤2500
heating area (m2)
1.16
2
2.63
3.5
4.61
5.58
7.5
11.2
13.1
14.1
rotational speed (rpm)
4 - 6
motor power (kw)
0.75
1.1
1.5
2
3
3
4
5.5
7.5
11
Floor area (length × width)(mm)
2160×800
2260×800
2350×800
2560×1000
2860×1300
3060×1300
3260×1400
3760×1800
3960×2000
4400×2500
Turning height(mm)
1750
2100
2250
2490
2800
2940
2990
3490
4100
4200
Internal pressure design (MPa)
-0.1-0.15
Jacket design pressure (MPa)
≤0.3
Operating temperature (oC)
Inside the can≤85 jacket≤140
When using a condenser, the vacuum pump,
2X-15A
2X-15A
2X-30A
2X-30A
2X-70A
JZJX300-8
JZJX300-4
JZJX600-8
JZJX600-4
JZJX300-4
Model, power
2KW
2KW
3KW
3KW
505KW
7KW
9.5KW
11KW
20.5KW
22KW
When the condenser is not in use, the vacuum pump...
SK-0.4
SK-0.8
SK-0.8
SK-2.7B
SK-2.7B
SK-3
SK-6
SK-6
SK-9
SK-10
Model, power
1.5KW
2.2KW
2.2KW
4KW
4KW
5.5KW
11KW
11KW
15KW
18.5KW
weight(kg)
800
1100
1200
1500
2800
3300
3600
6400
7500
8600
Note: For materials whose volume changes significantly before and after drying, the loading coefficient can be appropriately increased or decreased.
